Description
Holley Low/High rise lower bolt pattern.

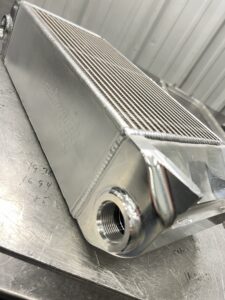

The plenum uses the best in the industry air to water core. 4.5″ thick. This core can easily obtain 2000-2200HP depending on the turbo selection and applications CFM.
Billet machined in house base plate, throttle body flange, water end tanks.

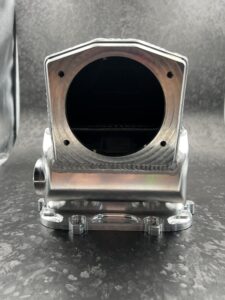

The TB pattern is the common LS 104MM X 70MM Gen IV
Height is 9.75″ from the mating surface to the holley lower.
Water core end tanks threaded -16AN ORB to allow plenty of water flow through the core.
Water end tanks are CFD designed to internally maintain equal flow distribution.
Plenum sheet metal is precision laser cut and cnc bent.
3/16″ thick material
